Tuesday, September 11, 2007

Toasty Toes

Our house will have in floor radiant heat, which is exceptionally comfortable and exceptionally efficient. The colder it is outside, the toastier your feet get.

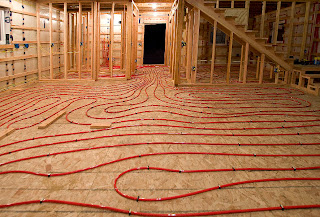

First we laid the tubing. It took about a day. There are six 200 feet runs. Some people would have done four 300 foot runs, but this setup allows more than double the water flow, which results in evener heat, a faster heating floor, and a better load on the boiler.

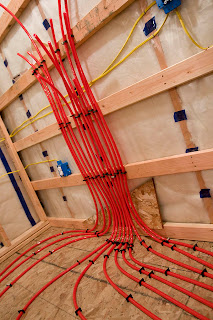

The tubing was very unwieldy. Marcy handled the 1000 foot roll of it, and ended up bruised on her arms. I operated the stapler, which looked like a big bike pump, except using it it reminded me of catching a fast pitch softball. There were 500 staples. All the tubes terminate in the utility room.





Today the gypcrete crew poured the floor on top of the tubes. Here's three of the crew, loading sand, emptying bags of gypcrete, and operating the mixer. Our truck is in the background. We borrowed a 325 gallon tank which saved us the expense of a water truck.


Here is the fourth crewmember beginning the pour. It comes out fairly liquid from a hose and is mostly self-leveling.

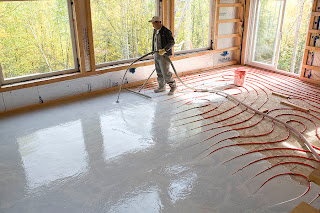

About halfway done. We had 1.5" thick poured. It weights about 12,000 pounds. Don't worry, our floor was engineered to support 18,000 pounds of concrete, but then we added 50% more joists just to be safe.


All the gypcrete has been poured and is being screeded to a final finish. The whole opperation only took about 2 hours, half of which was setup and teardown.
